Lumanor LED Lamps - Product Categories - LED Drivers - 1.05A 42W DALI Dimming

​QUICK OVERVIEW

Built-in DALI interface and push dimming function

Output current level selectable by DIP S.W.

Built-in active PFC function

Protections: Short circuit / Over voltage / Over temperature


Other features:



  • 180~295VAC input only

  • Cooling by free air convection

  • Temperature compensation function by external NTC

  • No load power consumption <1.2W@AC always on

  • Fully isolated plastic case

  • Class power unit, no FG

  • Built-in 12V/50mA auxiliary output

  • Suitable for LED lighting applications

  • Power supplies synchronization function up to 10 units

  • 3 years warranty



Input Voltage:180 → 295 V ac, 254 → 417 V dc

Output Voltage: 2 → 100V

Operation: Constant Current

Output Current: 1.05 A, 350 mA, 500 mA, 600 mA, 700 mA, 900 mA

Maximum Output Power: 42W

Dimming Operation: DALI

AC or DC Input Voltage: Ac, Dc

IP Rating: IP20

Voltage Rating: 180 → 295 V ac, 254 → 417 V dc

PPS6040DA DALI

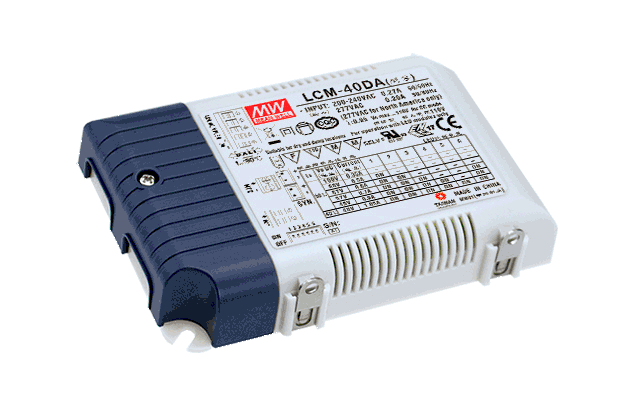

Lumanor™ 1.05A DC LED Dimming DALI Driver ; IP20 42W
