Lumanor LED Lamps - Product Categories - LED Drivers - 8A-12V TRIAC IP66

​QUICK OVERVIEW

Constant Voltage Design

Works with Leading edge and Trailing edge Triac dimmers

Protections: Short circuit/ Over Loading/ Over Current



Other features:

  • AC input 180-264VAC

  • Cooling by free air convection

  • 87% efficiency

  • 3 years warranty



Wattage: 100

Input Voltage (V):180-264VAC

Output Current (A): 8.3A

Output Voltage (V):12

Output Voltage Options: Single

DC Output Adjustment: No

Working Temperature: -40°C - +60°C

Safety Standards: EN61347-1, EN61347-2-13

EMC Standards: Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 (Surge 4KV)

Dimensions (LxWxH) Mm: 230x 70x 46

LTPPS8A TRIAC 240V

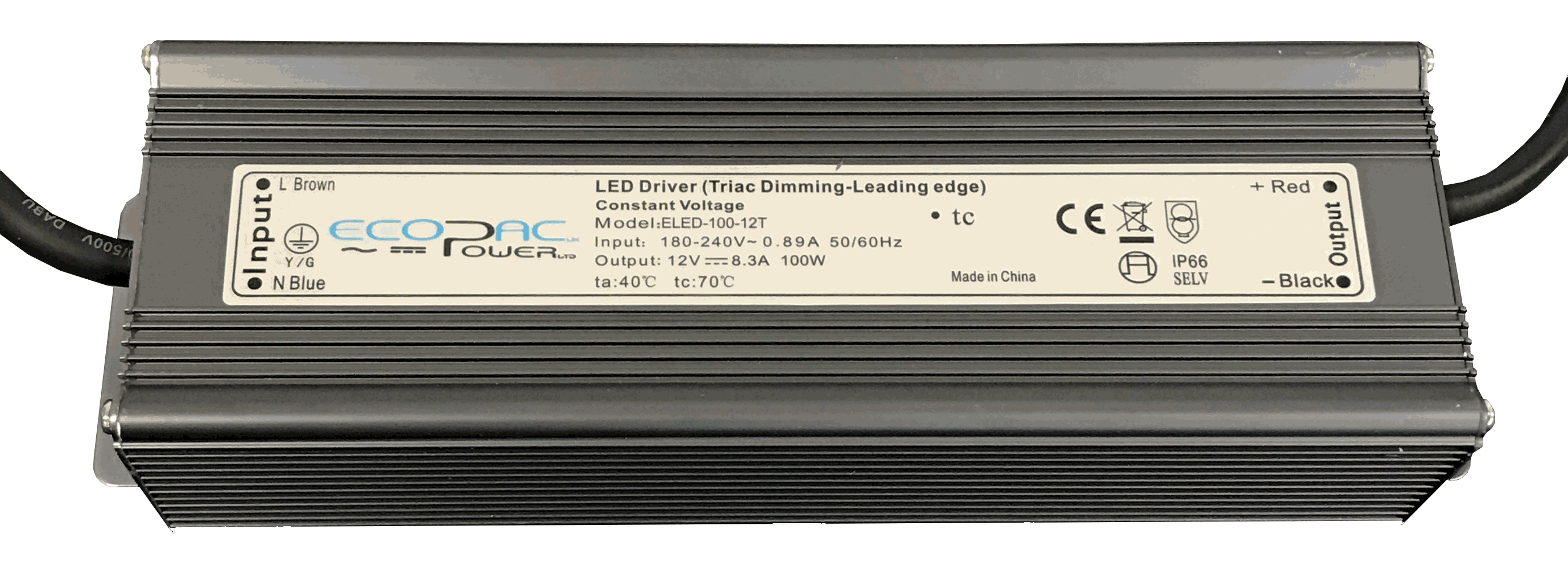

Lumanor™ 8A DC LED Driver ; IP66 100W-12V
